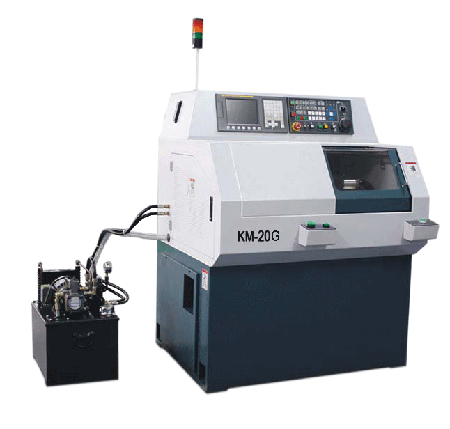

KM-20G

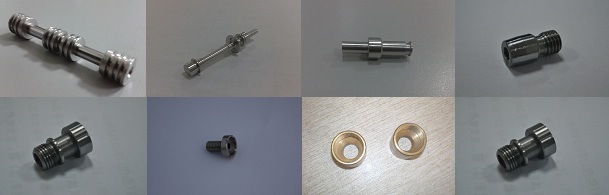

Processing Examples:
Dental Parts
Feature：
1.In-line tool.
2.CNC control system:GuangzhouCNC GSK988T.
3.Taiwan PMI linear guide, lead screw and Japanese NSK lead screw bearing.
4.The repeated positioning accuracy shall be within0.0025mm.
5.Move quickly at18m/min.
6.Processing Range: Auto parts, Mobil Parts, Rotation parts.
Machine Specification：
|
KM-20 Series |
Unit |
Parameters |
|
|
Processing Capacity |
Max.rotary diameter |
mm |
Ф240 |
|
Max.processing diameter x length |
Ф100x100 |
||
|
Max.bar processing diameter |
Ф20 |
||
|
Main Spindle |
Spindle speed |
rpm |
60-6000 |
|
Spindle bore diameter |
mm |
Ф26 |
|
|
Max.Stroke |
X-axis |
mm |
230 |
|
Z-axis |
200 |
||
|
Rapid Traverse |
X-axis |
m/min |
18 |
|
Z-axis |
18 |
||
|
Cutters |
Cutter holder numbers |
ea |
8 |
|
Outside diameter of shank |
mm |
12x12 |
|
|
inside diameter of shank |
mm |
ф25 (standard) |
|
|
Height of cutter holder center |
mm |
35 |
|
|
Motors |
Main driving motor power |
KW |
3.7/5.5 |
|
X-axis motor power |
KW |
0.75 |
|
|
Z-axis motor power |
KW |
0.75 |
|
|
Lubricating pump motor power |
KW |
0.04 |
|
|
Cooling pump motor power |
KW |
0.18 |
|
|
Others |
Cooling tank capacity |
L |
60 |
|
Lubricating tank capacity |
L |
1.8 |
|
|
Air consumption |
L/Min. |
6 |
|
|
Total power |
KVA |
6 |
|
|
Height |
mm |
1460 |
|
|
Floor space |
mm |
1200x1350 |
|
|
Weight |
kg |
1100 |
|
|
CNC controlled system |
|
GuangzhouCNC GSK988T |
|
|
Accuracy |
Repeated positioning accuracy |
mm |
0.0025 |
CNC Controller Specification:
|
Control system |
GuangzhouCNC GSK988T |
|
Control axis quantity |
3 axis |
|
Linked axis quantity |
2axis |
|
Minimal setting unit |
X:0.001mmZ:0.001MMCS:0.001dec |
|
Command input mode |
Absolute/Increment |
|
Interpolation function |
Linear/arc/circular cone/thread/rigid tapping |
|
Cutting feed |
1~10.000mm/min |
|
Tool position additions and corrections |
64 groups |
|
Auxiliary function |
M2? S4 and T4 |
|
Idling time |
0~99,999,999s |
|
Feed regulation multiplying power |
0~150% |
|
Quick regulation multiplying power |
F0, F25, F50,F100% |
|
Input and output interface |
RS232C/CF card |
|
Display language |
15kinds of language, including Chinese, English etc. |
|
Memory capacity |
512kb |
The standard accessories:
|
1 |
Cooling system |
1Set |
|
2 |
Security device |
1Set |
|
3 |
Lubrication device |
1Set |
|
4 |
Chuck adaptor |
1Set |
|
5 |
Collect chuck blank |
1Set |
|
6 |
Tools holder |
Front(2Sets),back(2Sets) |
|
7 |
Machine base and screw |
4Sets |
|
8 |
Lighting device |
1Set |
|
9 |
Transformer |
1Set |
|
10 |
USB Interface |
1Set |
|
11 |
Signal lamb(3 color) |
1Set |
|
12 |
Tools |
1Set |
Special Equipment:
|
1. Chip cleaner |
|
2. Foot pedal |
|
3. Drill chunk |
|
4. Power tool |
|
5. Main spindle inching blow |
|
6. Various tools holder |
|
7. CS function of main spindle |
|
8. Hydraulic clamping device |
|
9. Precise chunk assembly |
|
10. Special spring chunk |
|
11.Automatic bar feeder |
|
12. Picking device |
