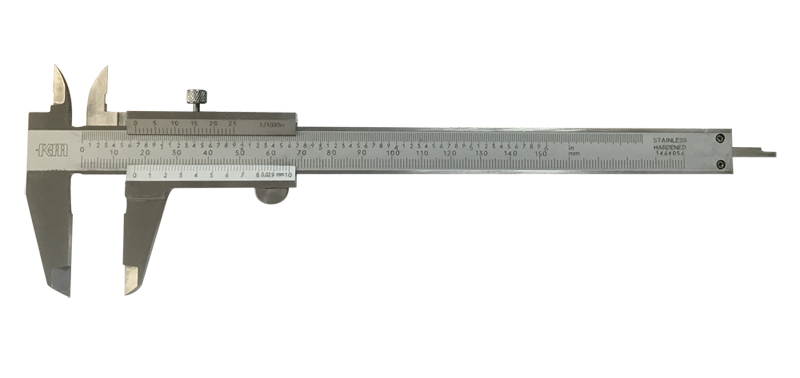

KM-1506SCM
Feature:
1. Graduation:0.02mm/0.001″ and0.05mm/1/128″both are optional.
2. Stainless steel.
3. Outside diameter (O.D),inside diameter (I.D) and steps measuring.
4. Lock screw for holding the sliding jaw position.
5. Inch and metric measurement.
6. Mono-block type.
7. Supplied in safe case packing.
Specification:
Graduation:0.02mm/0.001″ or0.05mm/1/128″
Order No. |
Range |
Accuracy |
Dimension |
||||
L |
a |
b |
c |
d |
|||
KM-1506SCM |
0~150mm/6’’ |
±0.03mm |
236 |
40 |
21 |
16.5 |
16 |
KM-2008SCM |
0~200mm/8’’ |
±0.03mm |
286 |
50 |
24 |
19.5 |
16 |
KM-30012SCM |
0~300mm/12’’ |
±0.04mm |
400 |
60 |
26 |
21.5 |
16 |
