Products
External Measurement
Position actual:Home > Products > Caliper Gages > External Measurement

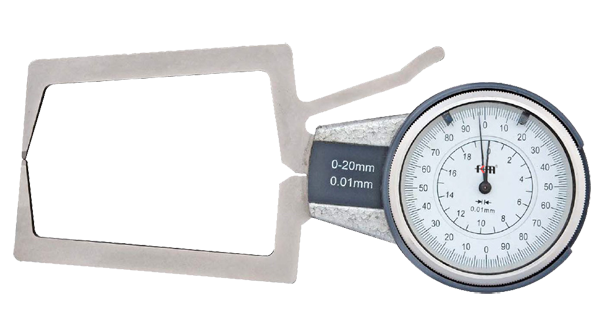

KM-510A-10




Feature:

1. Graduation:0.01mm(Metric);0.0005″(Inch).

2. Suited for measuring grooves and other hard-to-reach outside dimension.

3. Supplied in safe case packing.



Specification:

Travel 10mm

Metric

Order No.

Range

Graduation

Accuracy

Measuring Contact Forms

KM-510A-10

0~10mm

0.01mm

0.02mm

KM-510A-20

10~20mm

0.01mm

0.02mm

KM-510A-30

20~30mm

0.01mm

0.02mm

KM-510A-40

30~40mm

0.01mm

0.02mm

KM-510A-50

40~50mm

0.01mm

0.02mm

KM-510B-10

0~10mm

0.01mm

0.02mm

KM-510B-20

10~20mm

0.01mm

0.02mm

KM-510B-30

20~30mm

0.01mm

0.02mm

KM-510B-40

30~40mm

0.01mm

0.02mm

KM-510B-50

40~50mm

0.01mm

0.02mm

Inch

Order No.

Range

Graduation

Accuracy

Measuring Contact Forms

KM-510A-0.4

0~0.4″

0.0005″

0.0008″

KM-510A-0.8

0.4~0.8″

0.0005″

0.0008″

KM-510A-1.2

0.8~1.2″

0.0005″

0.0008″

KM-510A-1.6

1.2~1.6″

0.0005″

0.0008″

KM-510A-2.0

1.6~2.0″

0.0005″

0.0008″

KM-510B-0.4

0~0.4″

0.0005″

0.0008″

KM-510B-0.8

0.4~0.8″

0.0005″

0.0008″

KM-510B-1.2

0.8~1.2″

0.0005″

0.0008″

KM-510B-1.6

1.2~1.6″

0.0005″

0.0008″

KM-510B-2.0

1.6~2.0″

0.0005″

0.0008″

Travel 20mm

Metric

Order No.

Range

Graduation

Accuracy

Measuring Contact Forms

KM-520A-20

0~20mm

0.01mm

0.03mm

KM-520A-30

10~30mm

0.01mm

0.03mm

KM-520A-40

20~40mm

0.01mm

0.03mm

KM-520A-50

30~50mm

0.01mm

0.03mm

KM-520A-60

40~60mm

0.01mm

0.03mm

KM-520B-20

0~20mm

0.01mm

0.03mm

KM-520B-30

10~30mm

0.01mm

0.03mm

KM-520B-40

20~40mm

0.01mm

0.03mm

KM-520B-50

30~50mm

0.01mm

0.03mm

KM-520B-60

40~60mm

0.01mm

0.03mm

Inch

Order No.

Range

Graduation

Accuracy

Measuring Contact Forms

KM-520A-0.8

0~0.8″

0.0005″

0.0012″

KM-520A-1.2

0.4~1.2″

0.0005″

0.0012″

KM-520A-1.6

0.8~1.6″

0.0005″

0.0012″

KM-520A-2.0

1.2~2.0″

0.0005″

0.0012″

KM-520A-2.4

1.6~2.4″

0.0005″

0.0012″

KM-520B-0.8

0~0.8″

0.0005″

0.0012″

KM-520B-1.2

0.4~1.2″

0.0005″

0.0012″

KM-520B-1.6

0.8~1.6″

0.0005″

0.0012″

KM-520B-2.0

1.2~2.0″

0.0005″

0.0012″

KM-520B-2.4

1.6~2.4″

0.0005″

0.0012″
