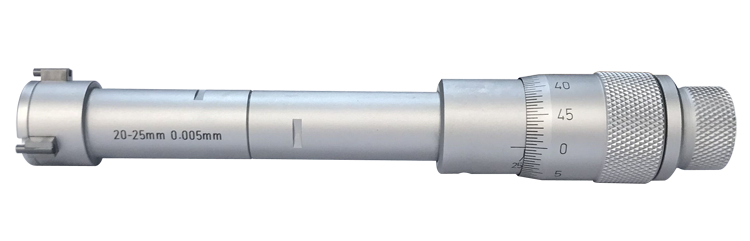

KM-2315-25
產品特征：
1.適用于盲孔和通孔的精密測量，配有接長桿可測量深孔尺寸。
2. 硬質合金測量面：棘輪測力。
3. 測量范圍100mm以內，配有校對環規。
4. 測量范圍6-12mm非硬質合金測量面。
5. 測量范圍12mm以上測頭可選鍍鈦。
6. 分辨率：測量范圍12mm以內：0.001mm。
測量范圍12mm以上：0.005mm。
7. 配安全包裝。
規格信息:
公制:
|
貨號 |
測量范圍 |
精度 |
分辨率 |
校對環規 |
L1 |
A |
接長桿 |
|
KM-2315-8 |
6-8mm |
±0.004mm |
0.001mm |
?6mm |
54.5mm |
1.5mm |
100mm |
|
KM-2315-10 |
8-10mm |
±0.004mm |
0.001mm |
?8mm |
54.5mm |
1.5mm |
100mm |
|
KM-2315-12 |
10-12mm |
±0.004mm |
0.001mm |
?10mm |
54.5mm |
1.5mm |
100mm |
|
KM-2315-16 |
12-16mm |
±0.004mm |
0.005mm |
?16mm |
80mm |
0.5mm |
150mm |
|
KM-2315-20 |
16-20mm |
±0.004mm |
0.005mm |
?16mm |
80mm |
0.5mm |
150mm |
|
KM-2315-25 |
20-25mm |
±0.004mm |
0.005mm |
?25mm |
90mm |
0.5mm |
150mm |
|
KM-2315-30 |
25-30mm |
±0.004mm |
0.005mm |
?25mm |
90mm |
0.5mm |
150mm |
|
KM-2315-40 |
30-40mm |
±0.004mm |
0.005mm |
?40mm |
97mm |
0.5mm |
150mm |
|
KM-2315-50 |
40-50mm |
±0.005mm |
0.005mm |
?40mm |
97mm |
0.5mm |
150mm |
|
KM-2315-63 |
50-63mm |
±0.005mm |
0.005mm |
?62mm |
114mm |
0.5mm |
150mm |
|
KM-2315-75 |
62-75mm |
±0.005mm |
0.005mm |
?62mm |
114mm |
0.5mm |
150mm |
|
KM-2315-88 |
75-88mm |
±0.005mm |
0.005mm |
?87mm |
114mm |
0.5mm |
150mm |
|
KM-2315-100 |
87-100mm |
±0.005mm |
0.005mm |
?87mm |
114mm |
0.5mm |
150mm |
英制:
|
貨號 |
測量范圍 |
精度 |
分辨率 |
校對環規 |
L1 |
A |
接長桿 |
|
KM-2315-0.35 |
0.275-0.35″ |
±0.00016″ |
0.0001″ |
0.275″ |
2.18″ |
0.06″ |
4″ |
|
KM-2315-0.42 |
0.35-0.42″ |
±0.00016″ |
0.0001″ |
0.35″ |
2.18″ |
0.06″ |
4″ |
|
KM-2315-0.5 |
0.425-0.5″ |
±0.00016″ |
0.0001″ |
0.5″ |
2.18″ |
0.06″ |
4″ |
|
KM-2315-0.65 |
0.5-0.65″ |
±0.00016″ |
0.0002″ |
0.65″ |
3.2″ |
0.02″ |
6″ |
|
KM-2315-0.8 |
0.65-0.8″ |
±0.00016″ |
0.0002″ |
0.65″ |
3.2″ |
0.02″ |
6″ |
|
KM-2315-1 |
0.8-1″ |
±0.00016″ |
0.0002″ |
1″ |
3.6″ |
0.02″ |
6″ |
|
KM-2315-1.2 |
1-1.2″ |
±0.00016″ |
0.0002″ |
1″ |
3.6″ |
0.02″ |
6″ |
|
KM-2315-1.6 |
1.2-1.6″ |
±0.00016″ |
0.0002″ |
1.6″ |
3.88″ |
0.02″ |
6″ |
|
KM-2315-2 |
1.6-2″ |
±0.0002″ |
0.0002″ |
1.6″ |
3.88″ |
0.02″ |
6″ |
|
KM-2315-2.5 |
2-2.5″ |
±0.0002″ |
0.0002″ |
2.5″ |
4.56″ |
0.02″ |
6″ |
|
KM-2315-3 |
2.5-3″ |
±0.0002″ |
0.0002″ |
2.5″ |
4.56″ |
0.02″ |
6″ |
|
KM-2315-3.5 |
3-3.5″ |
±0.0002″ |
0.0002″ |
3.5″ |
4.56″ |
0.02″ |
6″ |
|
KM-2315-4 |
3.5-4″ |
±0.0002″ |
0.0002″ |
3.5″ |
4.56″ |
0.02″ |
6″ |
