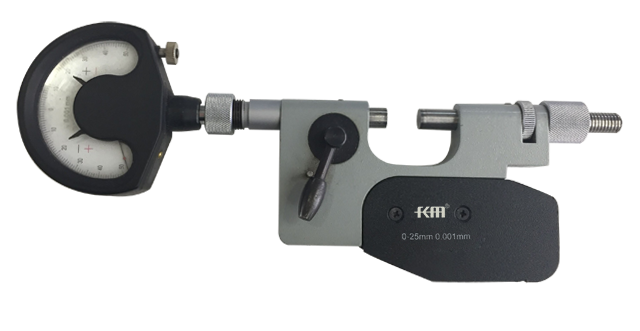

KM-3509A-25
產(chǎn)品特征：
1. 適用于批量零件的檢測。
2. 適配高精度量表。
3. 活動測砧（表頭）行程：3mm；測力6-9N。
規(guī)格信息:
|
貨號 |
測量范圍 |
分度值 |

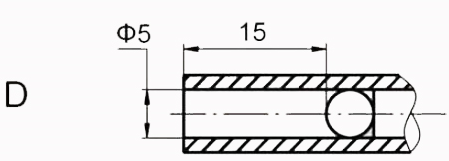

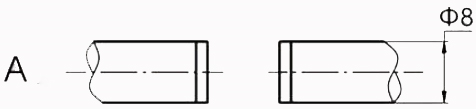

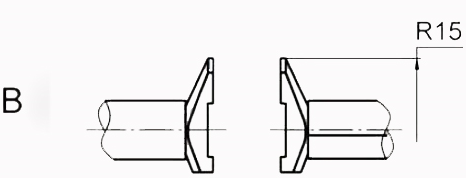

測量面形式 |
|
KM-3509A-25 |
0~25mm |
0.001mm |
|
|
KM-3509A-50 |
0~50mm |
0.001mm |
|
|
KM-3509A-100 |
50~100mm |
0.001mm |
|
|
KM-3509A-150 |
100~150mm |
0.001mm |
|
|
KM-3509A-200 |
150~200mm |
0.001mm |
|
|
KM-3509B-40 |
0~40mm |
0.001mm |
|
|
KM-3509B-90 |
40~90mm |
0.001mm |
|
|
KM-3509B-140 |
90~140mm |
0.001mm |
|
|
KM-3509B-190 |
140~190mm |
0.001mm |
|
|
KM-3509D-40 |
0~40mm |
0.001mm |
|
|
KM-3509D-90 |
40~90mm |
0.001mm |
|
|
KM-3509D-140 |
90~140mm |
0.001mm |
|
|
KM-3509D190 |
140~190mm |
0.001mm |
量表(選配)
|
貨號 |
測量范圍 |
分度值 |
精度 |
安裝尺寸 |
|
KM-343-008 |
±0.025mm |
0.001mm |
0.5μm |
φ8H7 |
|
KM-343-009 |
±0.050mm |
0.001mm |
1μm |
