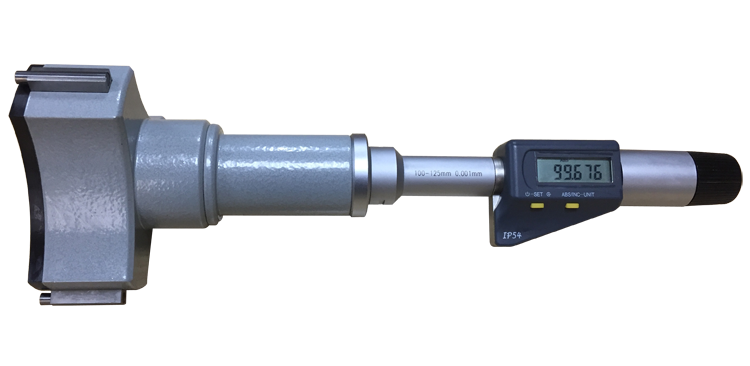

KM-2335L-125
產品特征：
1.IP54防護等級。
2.適用于盲孔和通孔的精密測量。
3.硬制合金測量面，棘輪測力。
4.100m/4″以內配有校對環規,100mm/4″以上選配。
5. 硬質合金測量面,鋁合金主體。
規格信息：
公制：
|
貨號 |
測量范圍 |
精度 |
分辨率 |
校對環規 |
L1 |
接長桿 |
|
KM-2335L-63 |
50~63mm |
±0.005mm |
0.001mm |
Φ62mm |
114mm |
150mm |
|
KM-2335L-75 |
62~75mm |
±0.005mm |
0.001mm |
Φ62mm |
114mm |
150mm |
|
KM-2335L-88 |
75~88mm |
±0.005mm |
0.001mm |
Φ87mm |
114mm |
150mm |
|
KM-2335L-100 |
87~100mm |
±0.005mm |
0.001mm |
Φ87mm |
114mm |
150mm |
|
KM-2335L-125 |
100~125mm |
±0.005mm |
0.001mm |
Φ100mm |
150mm |
150mm |
|
KM-2335L-150 |
125~150mm |
±0.005mm |
0.001mm |
Φ150mm |
150mm |
150mm |
|
KM-2335L-175 |
150~175mm |
±0.005mm |
0.001mm |
Φ150mm |
150mm |
150mm |
|
KM-2335L-200 |
175~200mm |
±0.005mm |
0.001mm |
Φ200mm |
150mm |
150mm |
|
KM-2335L-225 |
200~225mm |
±0.007mm |
0.001mm |
Φ200mm |
150mm |
150mm |
|
KM-2335L-250 |
225~250mm |
±0.007mm |
0.001mm |
Φ250mm |
150mm |
150mm |
|
KM-2335L-275 |
250~275mm |
±0.007mm |
0.001mm |
Φ250mm |
150mm |
150mm |
|
KM-2335L-300 |
275~300mm |
±0.007mm |
0.001mm |
Φ275mm |
150mm |
150mm |
英制：
|
貨號 |
測量范圍 |
精度 |
分辨率 |
校對環規 |
L1 |
接長桿 |
|
KM-2335L-2.5 |
2~2.5″ |
±0.0002″ |
0.00005″ |
2.5″ |
4.56″ |
6″ |
|
KM-2335L-3 |
2.5~3″ |
±0.0002″ |
0.00005″ |
2.5″ |
4.56″ |
6″ |
|
KM-2335L-3.5 |
3~3.5″ |
±0.0002″ |
0.00005″ |
3.5″ |
4.56″ |
6″ |
|
KM-2335L-4 |
3.5~4″ |
±0.0002″ |
0.00005″ |
3.5″ |
4.56″ |
6″ |
|
KM-2335L-5 |
4~5″ |
±0.0002″ |
0.00005″ |
4″ |
6″ |
6″ |
|
KM-2335L-6 |
5~6″ |
±0.0002″ |
0.00005″ |
6″ |
6″ |
6″ |
|
KM-2335L-7 |
6~7″ |
±0.0002″ |
0.00005″ |
6″ |
6″ |
6″ |
|
KM-2335L-8 |
7~8″ |
±0.0002″ |
0.00005″ |
8″ |
6″ |
6″ |
|
KM-2335L-9 |
8~9″ |
±0.00028″ |
0.00005″ |
8″ |
6″ |
6″ |
|
KM-2335L-10 |
9~10″ |
±0.00028″ |
0.00005″ |
10″ |
6″ |
6″ |
|
KM-2335L-11 |
10~11″ |
±0.00028″ |
0.00005″ |
10″ |
6″ |
6″ |
|
KM-2335L-12 |
11~12″ |
±0.00028″ |
0.00005″ |
11″ |
6″ |
6″ |
