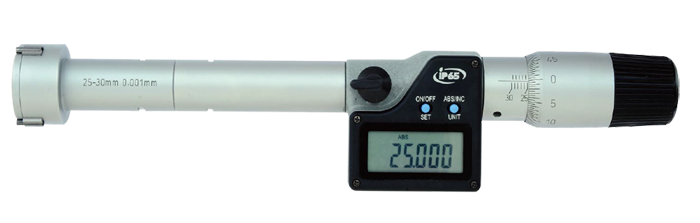

KM-2343-30
產品特征：
1.IP65 防護等級。
2.適用于盲孔和通孔的精密測量。
3.硬制合金測量面(不包括6-12mm)，棘輪測力。
4.100mm以內，配有校對環規。
規格信息：
公制：
|
貨號 |
測量范圍 |
精度 |
分辨率 |
校對環規 |
L1 |
A |
接長桿 |
|
KM-2343-8 |
6~8mm |
±0.004mm |
0.001mm |
Φ6mm |
54.5mm |
1.5mm |
100mm |
|
KM-2343-10 |
8~10mm |
±0.004mm |
0.001mm |
Φ8mm |
54.5mm |
1.5mm |
100mm |
|
KM-2343-12 |
10~12mm |
±0.004mm |
0.001mm |
Φ10mm |
54.5mm |
1.5mm |
100mm |
|
KM-2343-16 |
12~16mm |
±0.004mm |
0.001mm |
Φ16mm |
80mm |
0.5mm |
150mm |
|
KM-2343-20 |
16~20mm |
±0.004mm |
0.001mm |
Φ16mm |
80mm |
0.5mm |
150mm |
|
KM-2343-25 |
20~25mm |
±0.004mm |
0.001mm |
Φ25mm |
90mm |
0.5mm |
150mm |
|
KM-2343-30 |
25~30mm |
±0.004mm |
0.001mm |
Φ25mm |
90mm |
0.5mm |
150mm |
|
KM-2343-40 |
30~40mm |
±0.004mm |
0.001mm |
Φ40mm |
97mm |
0.5mm |
150mm |
|
KM-2343-50 |
40~50mm |
±0.005mm |
0.001mm |
Φ40mm |
97mm |
0.5mm |
150mm |
英制:
|
貨號 |
測量范圍 |
精度 |
分辨率 |
校對環規 |
L1 |
A |
接長桿 |
|
KM-2343-0.35 |
0.275~0.35″ |
±0.00016″ |
0.00005″ |
0.275″ |
2.18″ |
0.06″ |
4″ |
|
KM-2343-0.425 |
0.35~0.425″ |
±0.00016″ |
0.00005″ |
0.35″ |
2.18″ |
0.06″ |
4″ |
|
KM-2343-0.5 |
0.425~0.5″ |
±0.00016″ |
0.00005″ |
0.5″ |
2.18″ |
0.06″ |
4″ |
|
KM-2343-0.65 |
0.5~0.65″ |
±0.00016″ |
0.00005″ |
0.65″ |
3.2″ |
0.02″ |
6″ |
|
KM-2343-0.8 |
0.65~0.8″ |
±0.00016″ |
0.00005″ |
0.65″ |
3.2″ |
0.02″ |
6″ |
|
KM-2343-1 |
0.8~1″ |
±0.00016″ |
0.00005″ |
1″ |
3.6″ |
0.02″ |
6″ |
|
KM-2343-1.2 |
1~1.2″ |
±0.00016″ |
0.00005″ |
1″ |
3.6″ |
0.02″ |
6″ |
|
KM-2343-1.6 |
1.2~1.6″ |
±0.00016″ |
0.00005″ |
6″ |
3.88″ |
0.02″ |
6″ |
|
KM-2343-2 |
1.6~2″ |
±0.0002″ |
0.00005″ |
6″ |
3.88″ |
0.02″ |
6″ |
