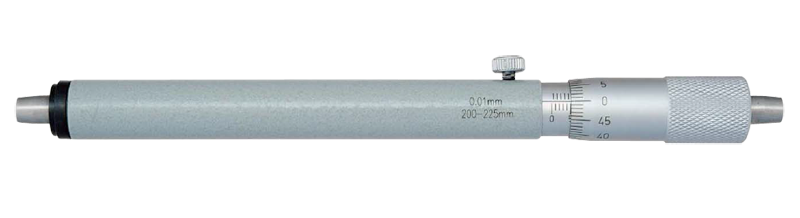

KM-3306-225
產品特征：
1. 分度值：0.01mm/0.001″
2. 硬質合金測量面，可選非硬質合金測量面。
3. 鋼管測桿外圓尺寸φ16mm。
規(guī)格信息：
公制
|
貨號 |
量程 |
精度 |
貨號 |
量程 |
精度 |
|
KM-3306-75 |
50-75mm |
0.005mm |
KM-3306-550 |
525-550mm |
0.011mm |
|
KM-3306-100 |
75-100mm |
0.005mm |
KM-3306-575 |
550-575mm |
0.011mm |
|
KM-3306-125 |
100-125mm |
0.006mm |
KM-3306-600 |
575-600mm |
0.012mm |
|
KM-3306-150 |
125-150mm |
0.006mm |
KM-3306-625 |
600-625mm |
0.012mm |
|
KM-3306-175 |
150-175mm |
0.007mm |
KM-3306-650 |
625-650mm |
0.012mm |
|
KM-3306-200 |
175-200mm |
0.007mm |
KM-3306-675 |
650-675mm |
0.013mm |
|
KM-3306-225 |
200-225mm |
0.008mm |
KM-3306-700 |
675-700mm |
0.013mm |
|
KM-3306-250 |
225-250mm |
0.008mm |
KM-3306-725 |
700-725mm |
0.013mm |
|
KM-3306-275 |
250-275mm |
0.009mm |
KM-3306-750 |
725-750mm |
0.014mm |
|
KM-3306-300 |
275-300mm |
0.009mm |
KM-3306-775 |
750-775mm |
0.014mm |
|
KM-3306-325 |
300-325mm |
0.009mm |
KM-3306-800 |
775-800mm |
0.014mm |
|
KM-3306-350 |
325-350mm |
0.009mm |
KM-3306-825 |
800-825mm |
0.015mm |
|
KM-3306-375 |
350-375mm |
0.010mm |
KM-3306-850 |
825-850mm |
0.015mm |
|
KM-3306-400 |
375-400mm |
0.010mm |
KM-3306-875 |
850-875mm |
0.015mm |
|
KM-3306-425 |
400-425mm |
0.010mm |
KM-3306-900 |
875-900mm |
0.016mm |
|
KM-3306-450 |
425-450mm |
0.010mm |
KM-3306-925 |
900-925mm |
0.016mm |
|
KM-3306-475 |
450-475mm |
0.011mm |
KM-3306-950 |
925-950mm |
0.016mm |
|
KM-3306-500 |
475-500mm |
0.011mm |
KM-3306-975 |
952-975mm |
0.017mm |
|
KM-3306-525 |
500-525mm |
0.011mm |
KM-3306-1000 |
975-1000mm |
0.017mm |
英制
|
貨號 |
量程 |
精度 |
貨號 |
量程 |
精度 |
|
KM-3306-3 |
2-3″ |
0.00020″ |
KM-3306-22 |
21-22″ |
0.00043″ |
|
KM-3306-4 |
3-4″ |
0.00020″ |
KM-3306-23 |
22-23″ |
0.00043″ |
|
KM-3306-5 |
4-5″ |
0.00024″ |
KM-3306-24 |
23-24″ |
0.00047″ |
|
KM-3306-6 |
5-6″ |
0.00024″ |
KM-3306-25 |
24-25″ |
0.00047″ |
|
KM-3306-7 |
6-7″ |
0.00028″ |
KM-3306-26 |
25-26″ |
0.00047″ |
|
KM-3306-8 |
7-8″ |
0.00028″ |
KM-3306-27 |
26-27″ |
0.00051″ |
|
KM-3306-9 |
8-9″ |
0.00032″ |
KM-3306-28 |
27-28″ |
0.00051″ |
|
KM-3306-10 |
9-10″ |
0.00032″ |
KM-3306-29 |
28-29″ |
0.00051″ |
|
KM-3306-11 |
10-11″ |
0.00036″ |
KM-3306-30 |
29-30″ |
0.00055″ |
|
KM-3306-12 |
11-12″ |
0.00036″ |
KM-3306-31 |
30-31″ |
0.00055″ |
|
KM-3306-13 |
12-13″ |
0.00036″ |
KM-3306-32 |
31-32″ |
0.00055″ |
|
KM-3306-14 |
13-14″ |
0.00036″ |
KM-3306-33 |
32-33″ |
0.00059″ |
|
KM-3306-15 |
14-15″ |
0.00040″ |
KM-3306-34 |
33-34″ |
0.00059″ |
|
KM-3306-16 |
15-16″ |
0.00040″ |
KM-3306-35 |
34-35″ |
0.00059″ |
|
KM-3306-17 |
16-17″ |
0.00040″ |
KM-3306-36 |
35-36″ |
0.00063″ |
|
KM-3306-18 |
17-18″ |
0.00040″ |
KM-3306-37 |
36-37″ |
0.00063″ |
|
KM-3306-19 |
18-19″ |
0.00043″ |
KM-3306-38 |
37-38″ |
0.00063″ |
|
KM-3306-20 |
19-20″ |
0.00043″ |
KM-3306-39 |
38-39″ |
0.00067″ |
|
KM-3306-21 |
20-21″ |
0.00043″ |
KM-3306-40 |
39-40″ |
0.00067″ |
